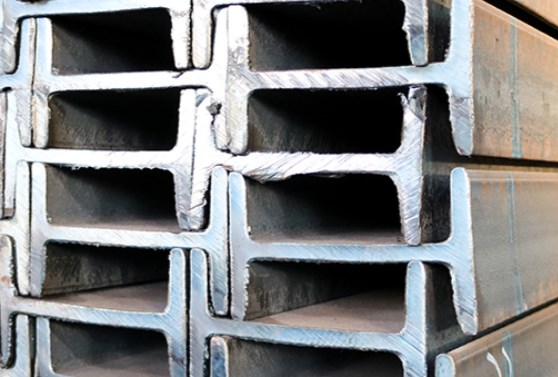

Profile HEA

Profilul HEA poate fi folosit in constructii metalice complexe. Aspectul placut al profilului HEA face ca acesta sa se integreze foarte bine arhitectural, in majoritatea cazurilor ramanand la vedere ca si element de design.  Profil HEA – Confectii metalice diverse.

HEAGREUTATE
Kg/m
DIMENSIUNI
mm
SECTIUNE
cmp
MODULUL
SECTIUNII cmc
hbslFWxWy
100
120
140
16.7
19.9
24.7
96
114
133
100
120
140
5.0
5.0
5.5
8.0
8.0
8.5
21.24
25.34
31.42
72.78
106.3
155.4
26.7
38.4
55.6
160
180
200
30.4
35.5
42.3
152
171
196
160
180
200
6.0
6.0
6.5
9.0
9.5
10.0
38.77
45.25
53.83
220.1
293.6
388.6
76.9
102.7
133.6
220
240
260
50.5
60.3
68.2
210
230
250
220
240
260
7.0
7.5
7.5
11.0
12.0
12.5
64.34
76.84
86.82
515.2
675.1
836.4
177.7
230.7
282.1
280
300
320
76.4
88.3
97.6
270
290
310
280
300
300
8.0
8.5
9.0
13.0
14.0
15.5
97.26
112.50
124.4
1013.0
1260.0
1479.0
340.2
420.6
465.7
340
360
400
105.0
112.0
125.0
330
350
390
300
300
300
9.5
10.0
11.0
16.5
17.5
19.0
133.50
142.80
159.00
1678.0
1891.0
2311.0
495.7
525.8
570.9
450
500
550
140.0
155.0
166.0
440
490
540
300
300
300
11.5
12.0
12.5
21.0
23.0
24.0
178.00
197.50
211.80
2896.0
3550.0
4146.0
631.0
691.1
721.3
600
650
700
178.0
190.0
204.0
590
640
690
300
300
300
13.0
13.5
14.5
25.0
26.0
27.0
226.50
241.60
260.50
4787.0
5474.0
6241.0
751.4
781.6
811.9
800
900
1000
224.0
252.0
272.0
790
890
990
300
300
300
15.0
16.0
16.5
28.0
30.0
31.0
285.80
320.50
346.80
7682.0
9485.0
11190.0
842.6
903.2
933.6
